Compact Vertical Lift for Narrow-Space Access Needs.

Core Structure Composition

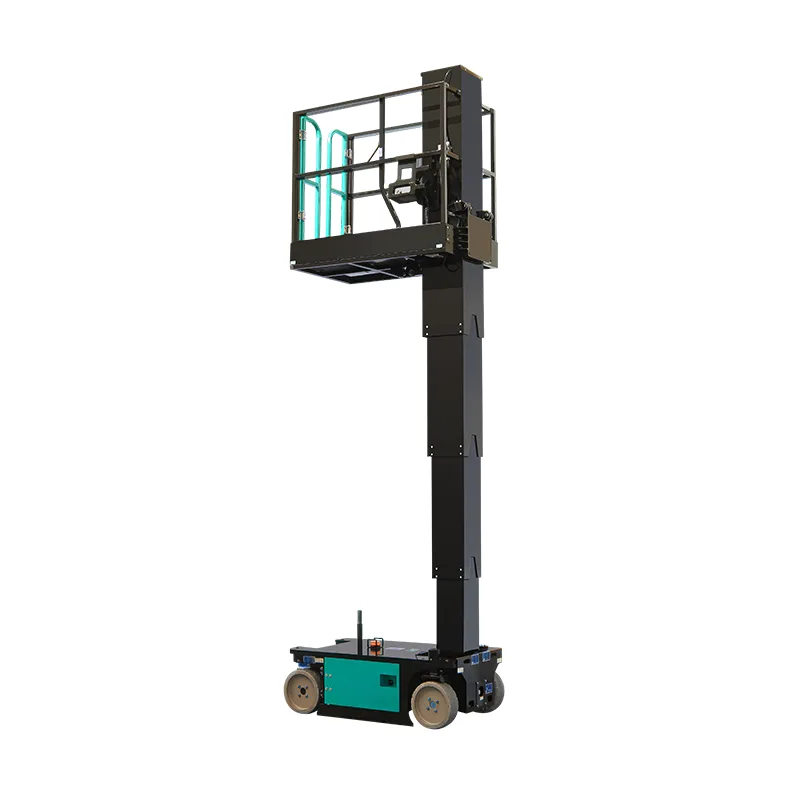

The self-propelled model among Vertical Lifts (Mast Lifts) is a mobile high-altitude operation equipment integrating lightweight design and high safety. It achieves vertical lifting through a telescopic sleeve-type mast structure—this structure is compact and stable, with a smaller overall size and lighter weight compared to the scissor arm structure of Scissor Lifts. Equipped with a miniaturized traveling chassis and wear-resistant small rubber wheels, it has an extremely small turning radius, enabling flexible movement in narrow spaces without repeated position adjustments to reach the target.

Key Performance & Safety Configuration

Operational Parameters: Working height typically ranges from 4 to 12 meters, with a load capacity of 150-250 kilograms. It can accommodate 1-2 operators and small tools, fully meeting the needs of precision high-altitude operations.

Transportation Convenience: The lightweight design facilitates transportation—it can be loaded onto ordinary trucks and even directly enter elevators for transport to high-rise work areas.

Comprehensive Safety Protection: The work platform is surrounded by protective guardrails over 1.1 meters high, equipped with an emergency lowering device and an anti-tip sensor. When the ground inclination exceeds the safe range, the equipment will automatically shut down to ensure operator safety.

Application Scenarios & Selection Reference

It is particularly suitable for high-altitude operations in narrow spaces and high-end scenarios, such as:

Shopping mall counter renovation

Office building ceiling maintenance

Laboratory equipment installation

Museum exhibition arrangement

It can easily access and operate in confined areas like elevator shafts and stairwells—something that Boom Lifts struggle to achieve.

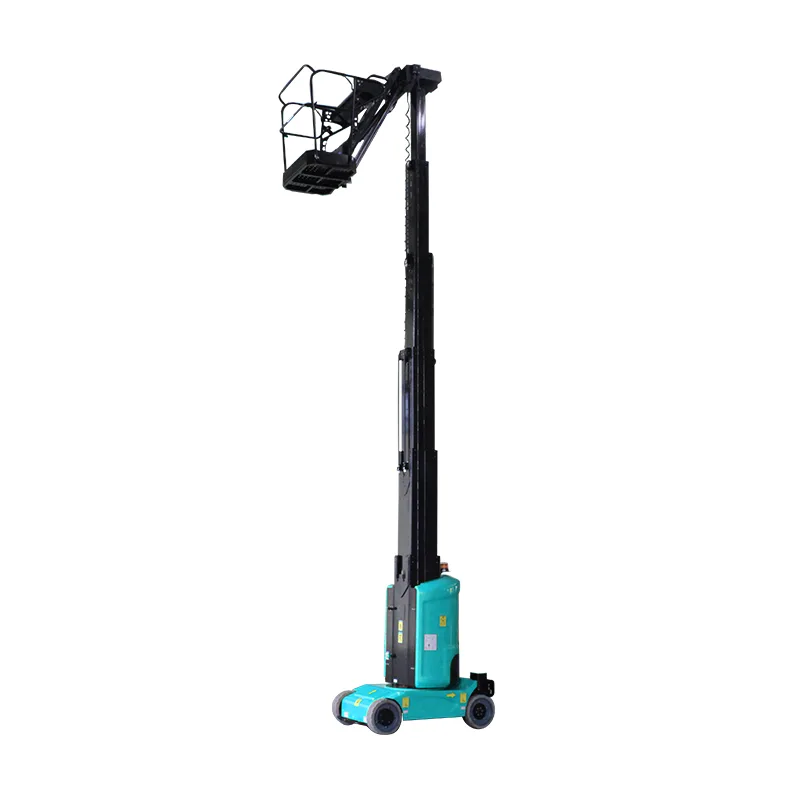

If the work site is spacious and requires multi-person collaboration, Scissor Lifts are more suitable; if precision operations are needed in narrow spaces or high-end venues, this equipment is a better fit. Some models are also equipped with an extended arm (JIB) to slightly adjust the working position, further enhancing operational flexibility.
