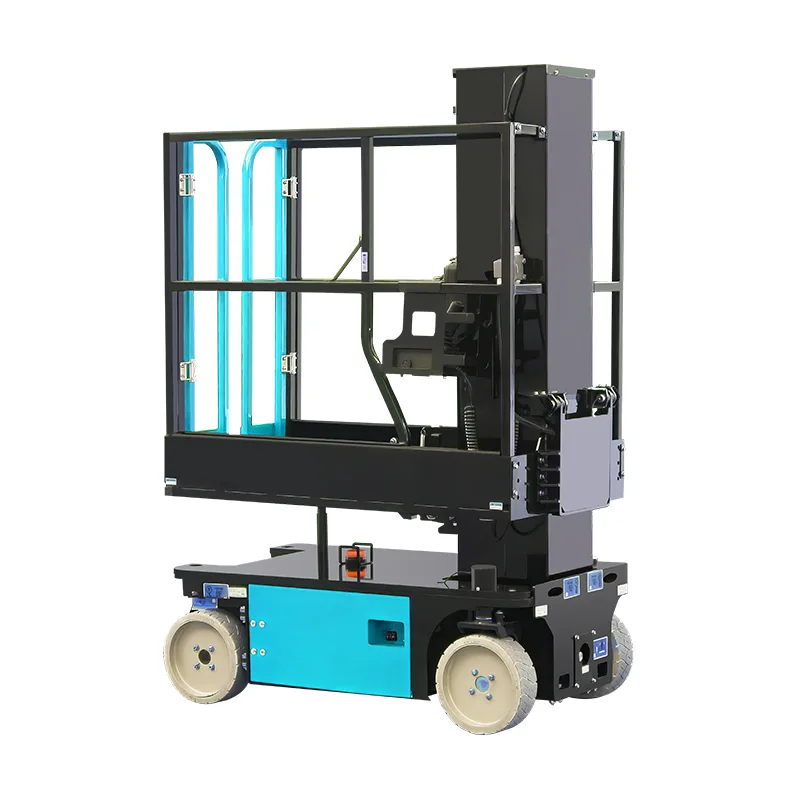

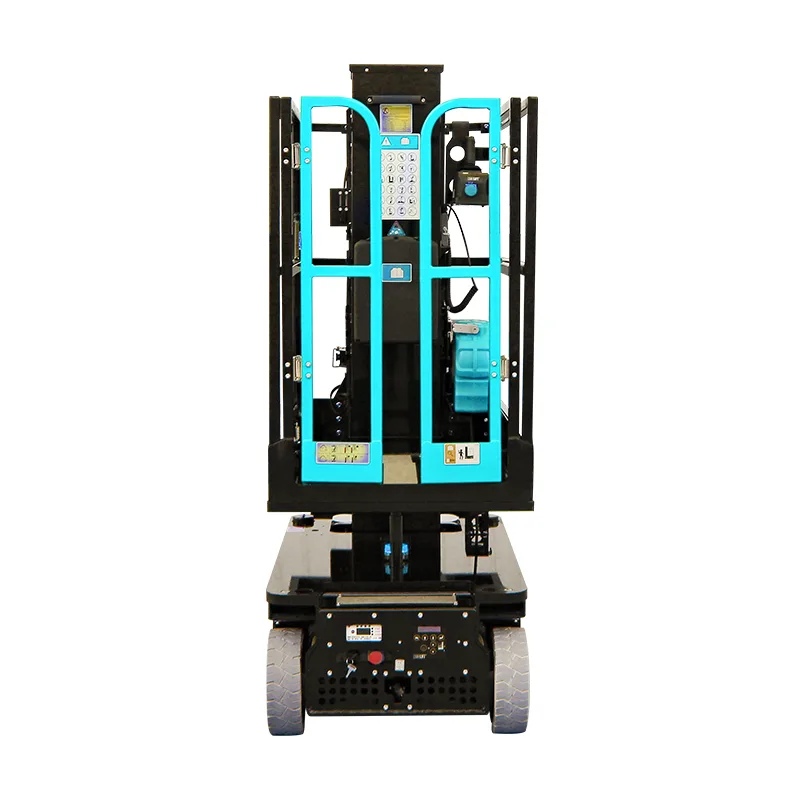

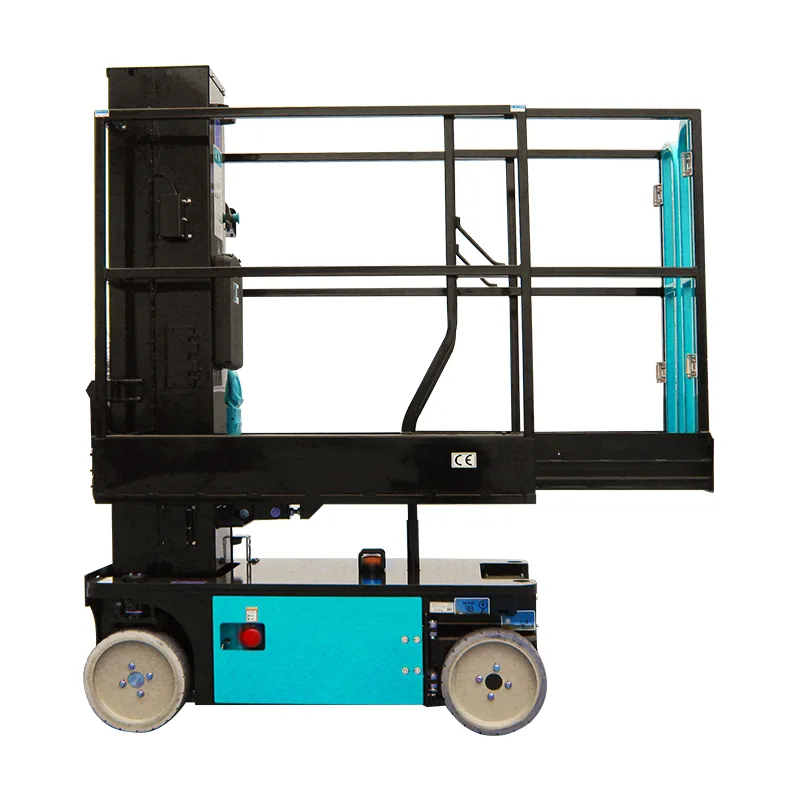

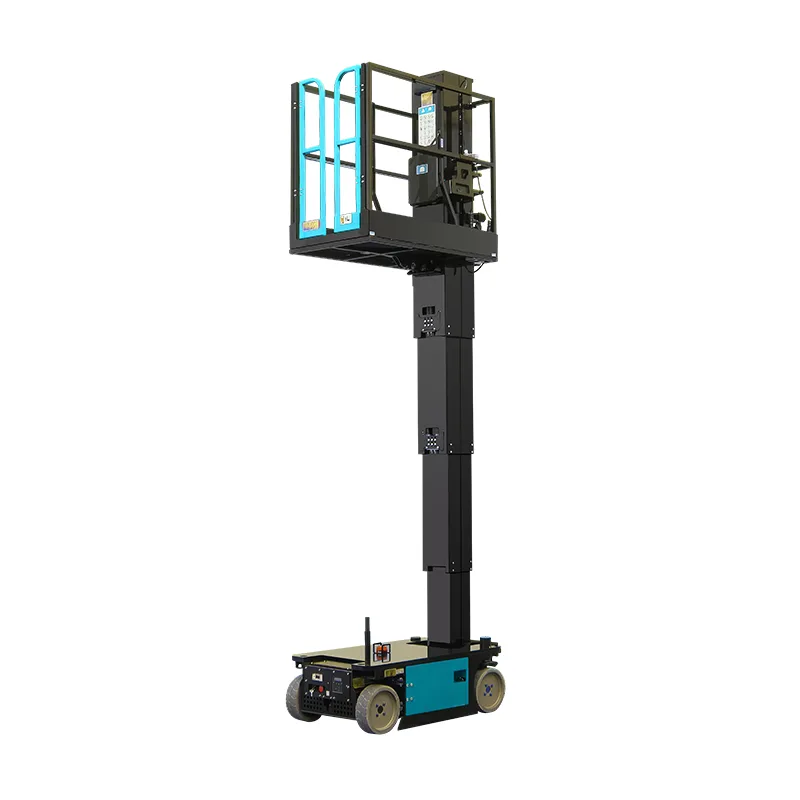

The 4.8m Self-Propelled Vertical Mast Lift strikes the perfect balance between accessibility and ease of use, now with industrial-grade control and safety features: This machine can reach the height required for most standard industrial ceiling jobs, while advanced diagnostics ensure smooth operation, floor protection, and maximum uptime. For professional facility maintenance teams, it's more than just a tool; it's the smart choice for ensuring smooth daily work.
The main part of 4.8m Self-Propelled Vertical Mast Lift’s performance is the proportional valve control system. It gives very smooth and exact movement, even when it’s at full working height. This stops jerking or uneven movements that can mess up careful work.
Another good feature is its ability to travel with a full load. Its strong drive system lets it easily handle even small slopes in the workshop. It works no matter how much it’s carrying. It's not just about power; it's about power that adapts to your workspace.
In complex indoor environments, two features work together to provide dual protection: automatic pothole protection and an automatic braking system, each effectively preventing unexpected risks—whether it's a wheel slipping into a gap in the floor or the machine accidentally rolling on a busy jobsite. Equally thoughtful, 4.8m Self-Propelled Vertical Mast Lift features high-quality, non-marking tires that won't scratch sensitive surfaces like epoxy or polished concrete, making it essential for meeting the stringent cleanliness standards of high-end facilities.
Safety redundancies—critical to preventing operational downtime—are built into its design: hydraulic cylinder burst valves prevent uncontrolled platform descent, and an emergency descent system ensures a safe return to the surface in the event of a power outage. Furthermore, a digital diagnostic system goes beyond simply reacting to malfunctions; it proactively identifies potential issues, transforming reactive repairs into predictive maintenance. This stops minor issues from turning into serious downtime, and keeps high equipment availability—and that’s exactly what teams need to keep operations running efficiently every day.
| Model | FN4.8-6.8VML |
| Platform | |
|---|---|
| Max. Working Height | 6.8m |
| Max. Platform Height | 4.8m |
| Lift Capacity | 227kg |
| Lift Capacity (Extension deck) | 114kg |
| Max. Occupants | 1 |
| Dimensions | |
| Overall Length | 1.36m |
| Overall Width | 0.76m |
| Overall Height (Stowed) | 1.98m |
| Platform Dimension | 1.3m×0.7m |
| Max. Horizontal Reach (Extension) | 0.51m |
| Wheelbase | 1.04m |
| Performance | |
| Turning Radius | 0.3m |
| Driving speed (Stowed) | 4km/h |
| Driving speed (Raised) | 1.1km/h |
| Rise/Lower Speed | 41.5/42sec |
| Gradeability | 0.25 |
| Power | |
| Dimensions | Φ305×100mm |
| Driving Motor | 2×24VDC/0.5kW |
| Lifting Motor | 24VDC/1.2kW |
| Battery | 2×12V/100Ah |
| Charger | 24V/15A |
