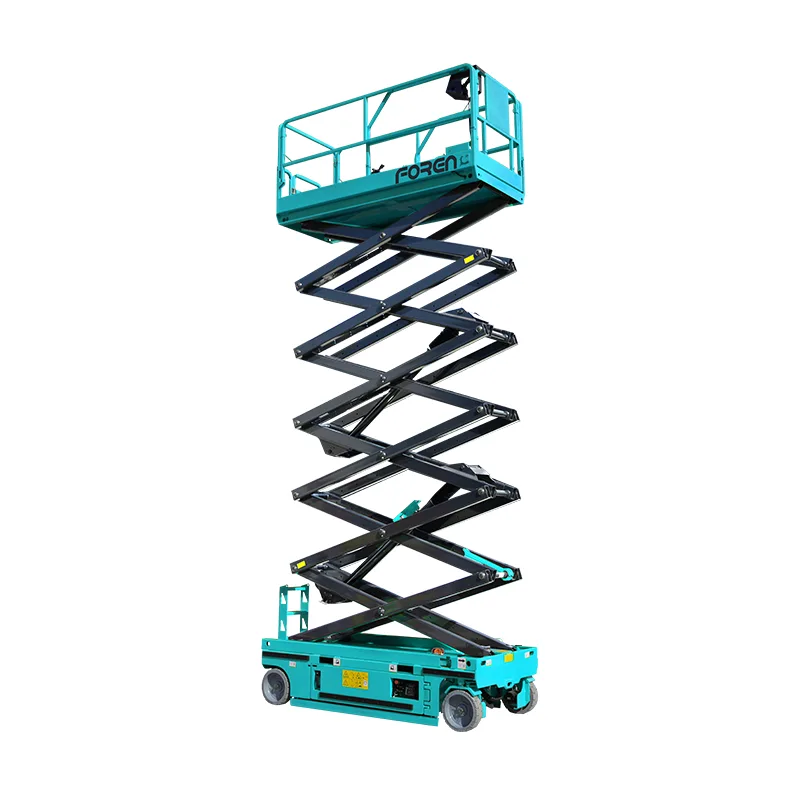

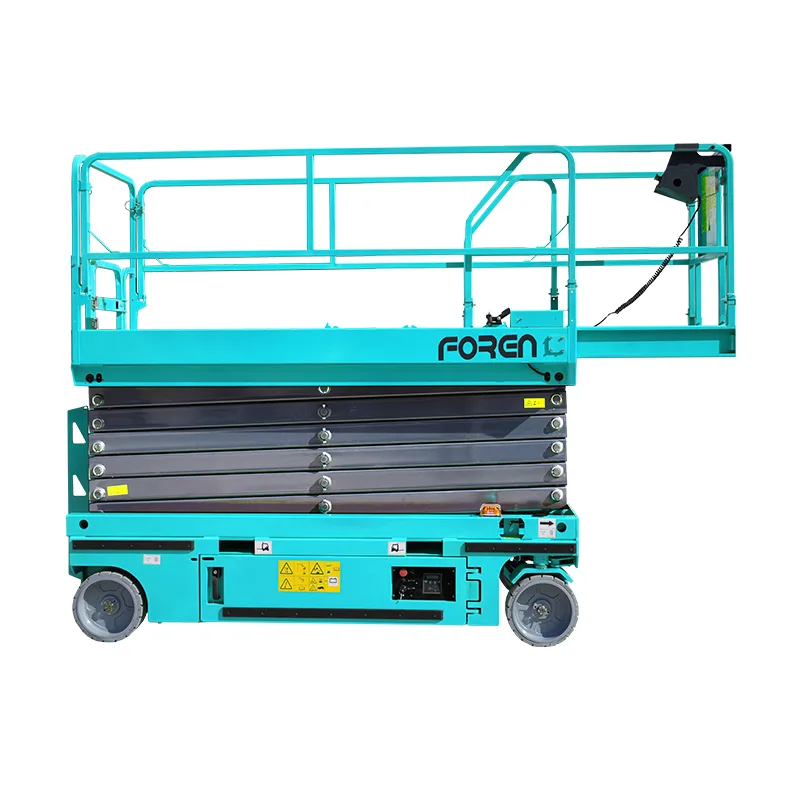

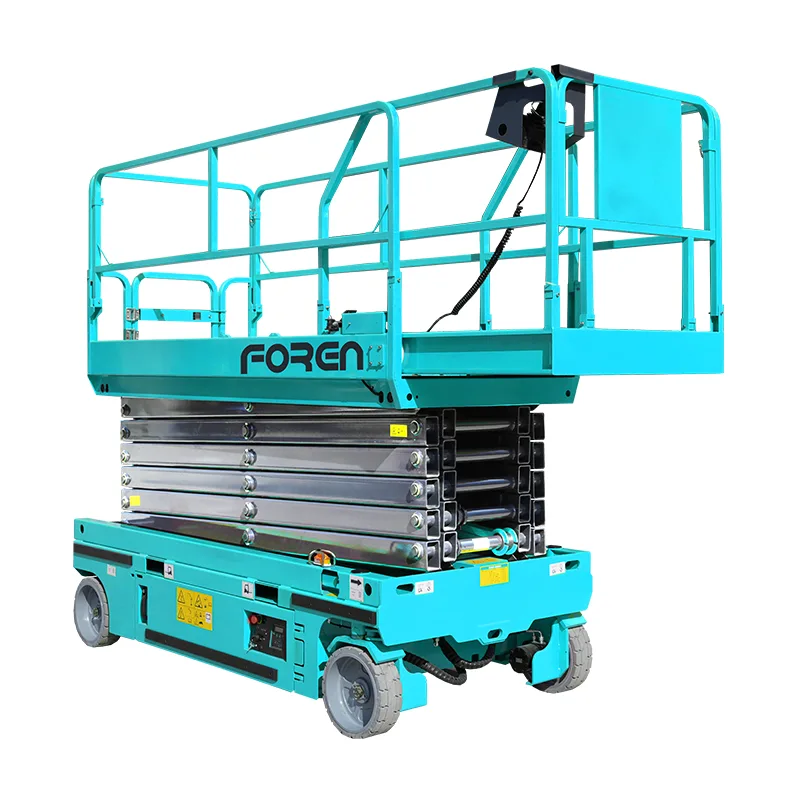

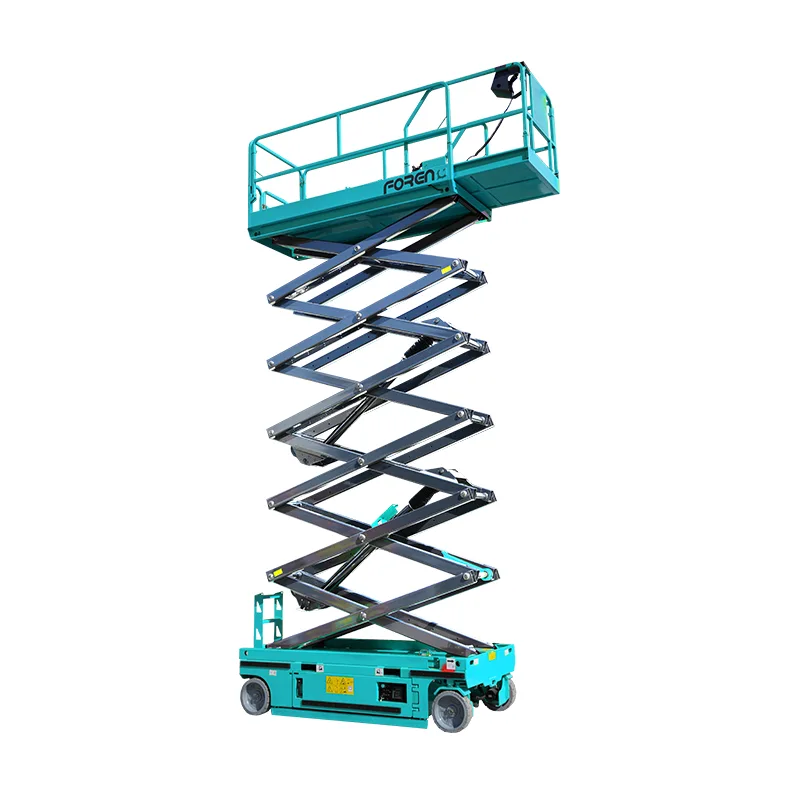

14m Self-Propelled Electric Scissor Lift

Foren excels at offering advanced, safe aerial work solutions, and its 14m Self-Propelled Electric Scissor Lift reflects this strength. It enables on-platform operation, zero indoor emissions, and time/labor savings, with strong load-bearing and safety features. For bulk buys or single purchases, it balances top quality with efficiency, making it a smart choice for buyers needing reliable indoor aerial equipment.
Model: FN1416S

Send Inquiry

Product Description

1. Core Design and Operational Efficiency Enhancement

14m Self-Propelled Electric Scissor Lift are designed with a focus on improving operational productivity. Unlike traditional scissor lift models, this platform is equipped with an integrated self-propelled drive system. This system allows operators to complete three key operations—lifting the platform, moving the equipment, and adjusting the working position—conveniently from the platform itself, where safety is guaranteed. This design gets rid of the need to push the platform by hand—something traditional models usually need.So it cuts down on unnecessary work stops, and saves important time and labor for each job.


2. Adaptability to Indoor Application Scenarios

The 14m Self-Propelled Electric Scissor Lift is an electric aerial work platform, and it works well for indoor places to use it.These places include warehouses, shopping malls, manufacturing facilities and more—these places usually have strict rules for air quality and noise levels.

The electric drive system means it makes no pollutant emissions when working, so it doesn’t cause air pollution that could hurt indoor air quality.Also, it runs very quietly, so it doesn’t cause noise pollution. This way, it doesn’t mess up the indoor work area or make workers uncomfortable.Plus, it can carry heavy loads and work stably. So it’s a good way to finish more tasks in less time, and it doesn’t put work safety at risk.


3. Core Operational Advantages

3.1 Time and Labor Cost Savings

The integrated self-propelled drive system enables operators to move and position the platform while it is elevated, eliminating the need for manual pushing. This reduces the frequency of work interruptions and lowers labor demands, directly cutting labor costs and shortening task completion time.


3.2 On-Site Safety Enhancement

The platform is equipped with integrated safety features, such as emergency stop devices and overload protection systems. These features effectively reduce the risk of operational accidents and ensure compliance with industry safety regulations, safeguarding the personal safety of operators.


3.3 Clean Operation in Indoor Environments

The platform is powered by electricity, so it doesn’t produce exhaust fumes when it works.This not only meets indoor air quality standards. It also protects the health of workers on site, and stops possible damage to stored inventory.For example, it keeps goods in warehouses or malls from getting contaminated.


3.4 Daily Productivity Improvement

The 14m Self-Propelled Electric Scissor Lift moves easily and can position quickly. So it lets operators cover more work areas in one shift.This cuts down the time used to adjust the equipment's position. It also improves the total work done each day.


3.5 Excellent Ground Clearance Performance

Compared with many traditional scissor lift models, the 14m Self-Propelled Electric Scissor Lift has better ground clearance. This advantage enables it to traverse slight bumps on the ground and cross dock plates smoothly, minimizing operational delays caused by minor terrain obstacles.


Dimensions

Max. Working Height 14m
Max. Platform Height 12m
Overall Length  2.85m
Overall Width 1.32m
Overall Height(Guardrails unfolded) 2.65m
Overall Height(Guardrails folded) 2.08m
Platform Length(Stowed) 2.71m
Platform Width 1.12m
Max Horizontal Reach (Extension) 0.9m


Performance

Load Capacity 245kg
Load Capacity(Extension deck) 110kg
Gradeability 25%
Turning Radius (Inside) 0
Turning Radius (Outside) 2.4m
Maximum Working Inclination Angle X1.5°/Y3°
Tyre Size φ381*127
Battery 4×6V/240Ah
Charger  24v/30A
Total Weight 3710Kg


14m Self-Propelled Electric Scissor Lift14m Self-Propelled Electric Scissor Lift14m Self-Propelled Electric Scissor Lift14m Self-Propelled Electric Scissor Lift
