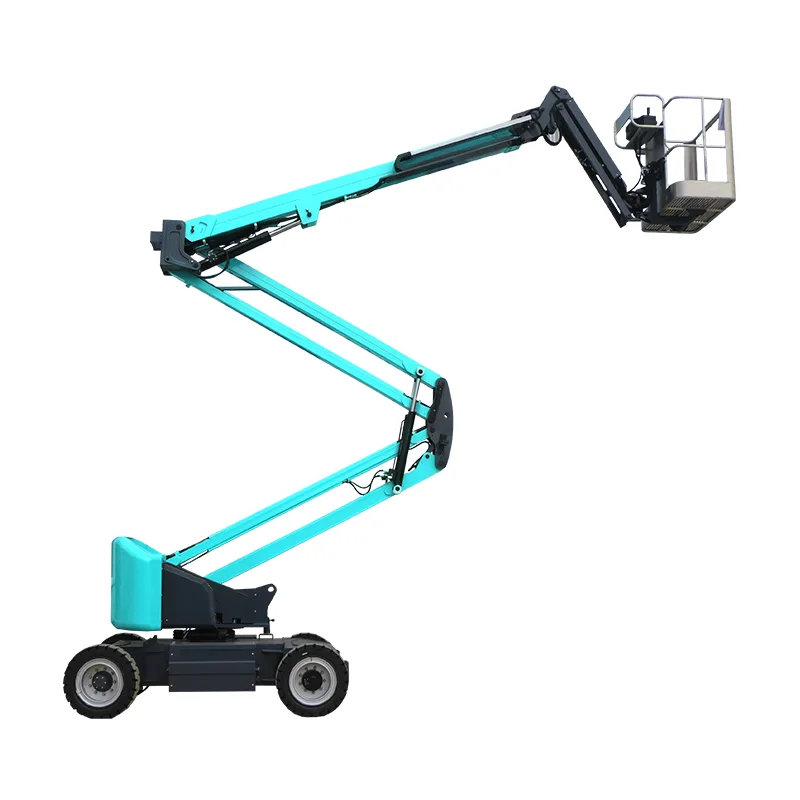

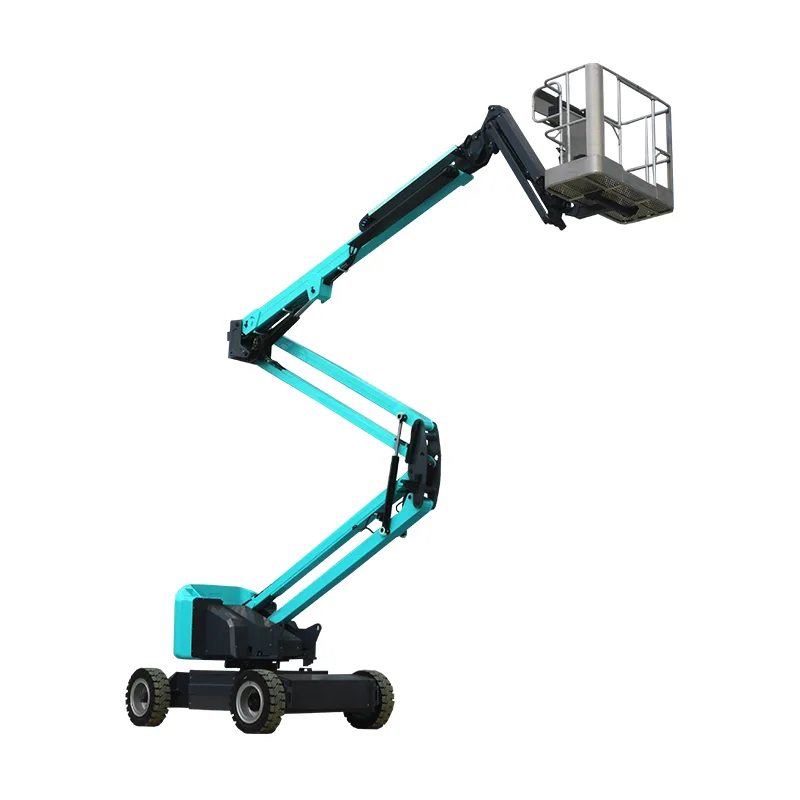

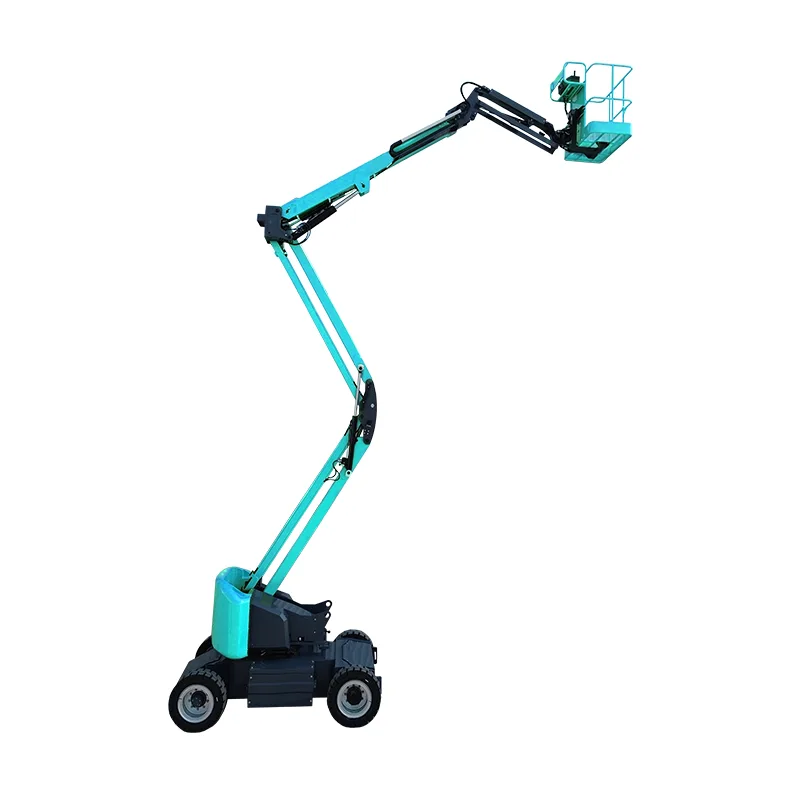

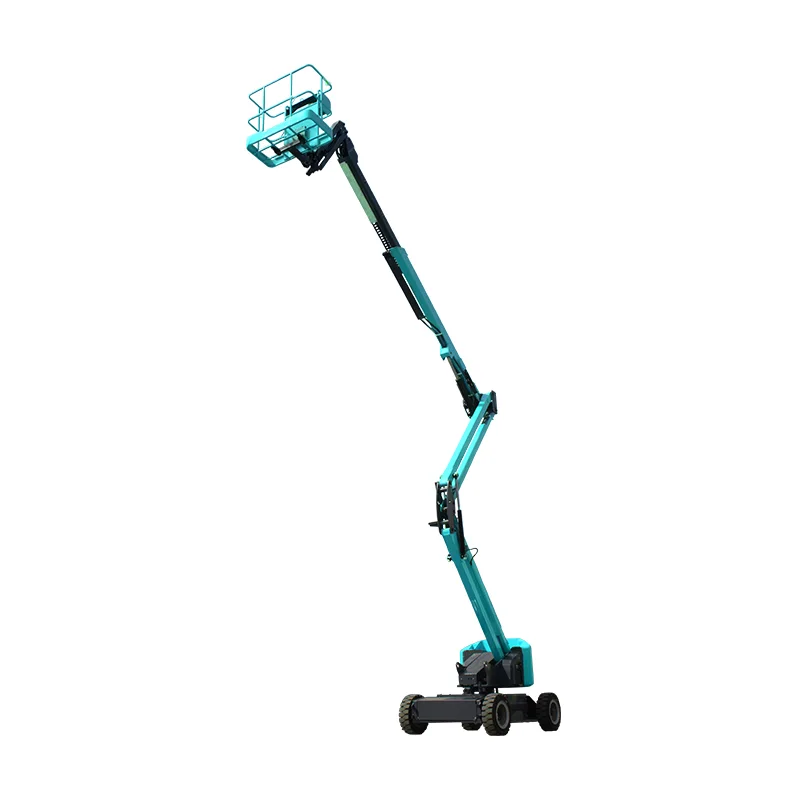

14m Electric Articulating Boom Lift

The 14m Electric Articulating Boom Lift is an upgraded version of our electric articulated boom lift. It's designed for exceptional performance in demanding work environments. With a maximum working height of 15.8 meters and a platform height of 13.8 meters, this machine sets a new benchmark for reach and flexibility in its class.

Key Performance Numbers

Maximum working height: 15.8 meters

Platform height: 13.8 meters

Maximum outreach: 7.0 meters

Working radius: 7.5 meters

Rated capacity: 230 kg

Platform dimensions: 1.4×0.76 meters

Stowed height: <2 meters

The advanced articulation system lets the platform reach over obstacles up to 7 meters high. It also keeps a small stowed size. This makes it easy to transport and move in small spaces.

Advanced Safety Systems

The 14m Electric Articulating Boom Lift has comprehensive safety features. These features are designed to protect operators and equipment. It has two main core modules: a multi-layer protection system and intelligent safety management.

The multi-layer protection system includes tilt protection (it shuts down automatically when triggered), overload protection (it supports real-time monitoring), dual emergency descent systems (one for the platform and one for the base), 360° anti-collision sensors, dual emergency stop buttons, an automatic braking system, fall arrest anchors, and enhanced platform guardrails with mid-rails. The intelligent safety management includes real-time system status monitoring, automatic leveling on slopes of up to 3°, battery monitoring (with low-battery protection), and all-weather-resistant controllers suitable for all environmental conditions.

Application Scenarios & Problem Solving

Industrial Maintenance Solutions

Challenge: Maintaining facilities with high ceilings (15+ meters) requires frequent equipment repositioning during maintenance work.

Solution: It has a 7.5-meter working radius. It can cover a large area from one setup position.This significantly reduces repositioning time and significantly lowers labor costs.

Commercial Construction Applications

Challenge: Working on cramped urban sites, requiring operation around complex structural obstacles.

Solution: Its 7-meter operating range enables operators to work over partitions, machinery, and structural components without frequent repositioning.

Facility Management Benefits

Challenge: When performing height work within occupied facilities, you need to minimize disruption to normal activities.

Solution: The device is emission-free and operates quietly (<65 dB). This makes it safe for use in sensitive environments such as hospitals, schools, and active industrial facilities.

Rental Business Advantages

Optimizing Revenue

Premium Service Level: Get higher rental prices for its 15m+ working height capability

Wider Application Range: Serve different customers—from industrial maintenance to commercial construction

Less Downtime: The electric powertrain needs less maintenance. This makes the equipment available more often
