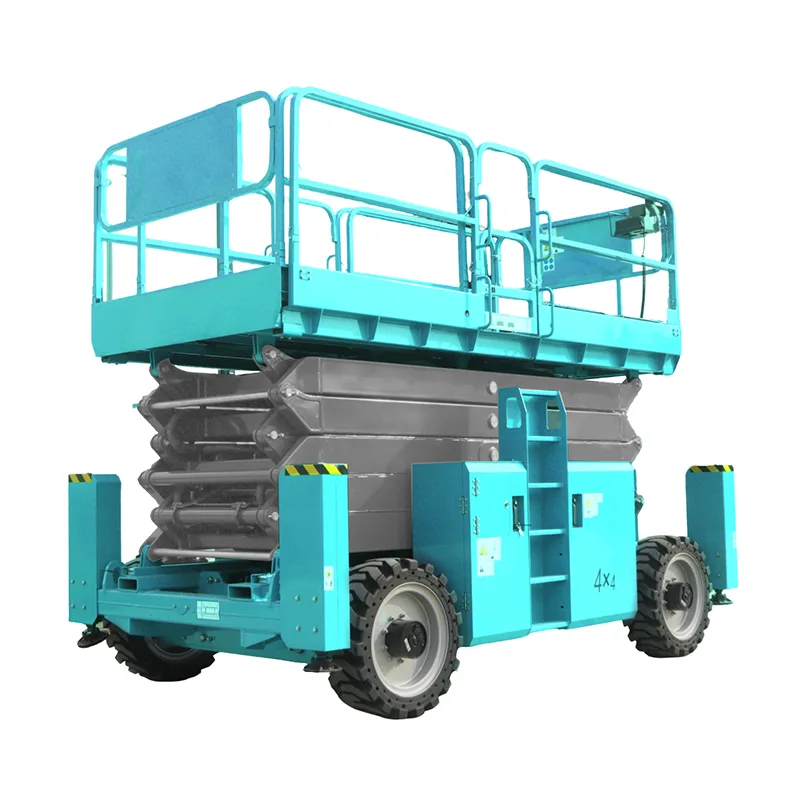

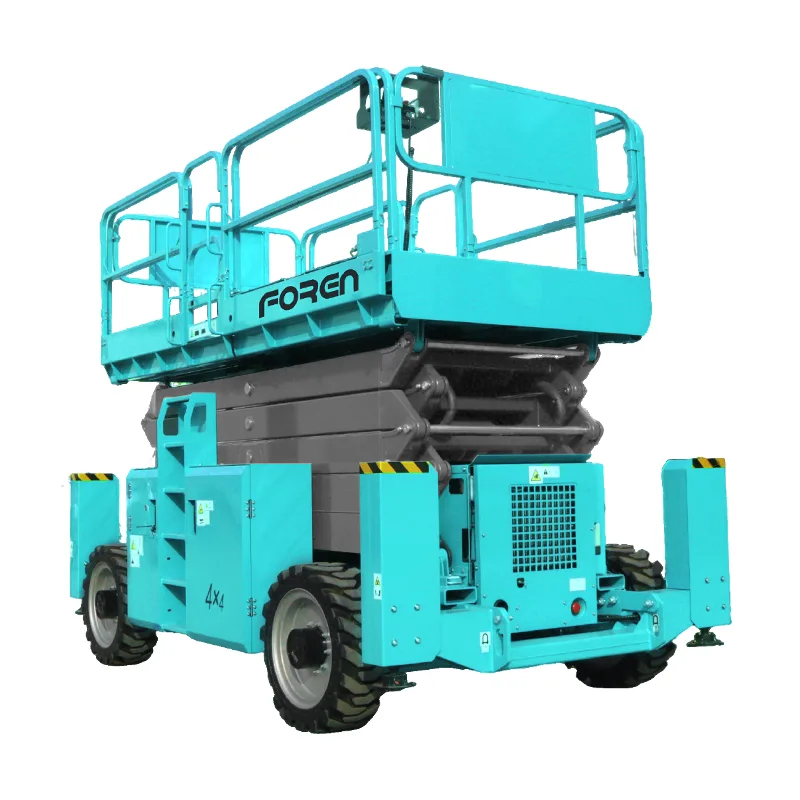

10m Diesel Self-Propelled Electric Scissor Lift
  • 10m Diesel Self-Propelled Electric Scissor Lift 10m Diesel Self-Propelled Electric Scissor Lift
  • 10m Diesel Self-Propelled Electric Scissor Lift 10m Diesel Self-Propelled Electric Scissor Lift
  • 10m Diesel Self-Propelled Electric Scissor Lift 10m Diesel Self-Propelled Electric Scissor Lift

10m Diesel Self-Propelled Electric Scissor Lift

Foren’s 10m Diesel Self-Propelled Electric Scissor Lift (10m platform/12m working height) has diesel power, off-road chassis & one-touch leveling. It cuts costs, boosts durability—choose, select this lift for construction/mining; opt for its reliable rough-terrain performance!
Model: FN1012D

Send Inquiry

Product Description

The 10m Diesel Self-Propelled Electric Scissor Lift large rough-terrain scissor lift is a powerful machine. It is made for rugged conditions. It uses a high-horsepower diesel engine. It gives plenty of power for good performance in the toughest working environments. It has a 10-meter platform height and a 12-meter maximum working height. The 10m Diesel Self-Propelled Electric Scissor Lift has a one-touch hydraulic leveling system as standard. This system helps set it up quickly and stably on uneven ground. With its robust off-road chassis, it is ideal for tough outdoor jobs such as construction and mining.


Product Feature

Expand Your Client Base: It has powerful off-road capability. This appeals to many outdoor clients (construction, mining, municipal work). It increases rental opportunities.

Boost Customer Satisfaction: The one-touch leveling makes the machine easier, safer and faster to set up. This encourages customers to rent it again.

Reduce Operating Costs: Diesel power is reliable. It is easier to maintain, and you don’t have to worry about charging it. This keeps your fleet available more often and cuts down on downtime.

Excellent durability: Strong and durable, it can cope with various harsh environments. It not only extends the service life of the machine, but also maintains a high residual value.This protects your investment.

Instant Usability: Renters can use it right away. They don’t need extra power sources. This simplifies the rental process and makes your service more efficient.


Dimensions

Max. Working Height 12m
Max. Platform Height 10m
Overall Length  4.8m
Overall Width 2.28m
Overall Height 2.8m
Platform Length(Stowed) 3.95m
Platform Width 1.83m
Max Horizontal Reach (Extension) 1.52m


Performance

Load Capacity 1150kg
Load Capacity(Extension deck) 230kg
Gradeability 30%
Wheelbase 2.85m
Ground Clearance 0.23m
Max Platform Occupancy 7persons
Control Voltage 12v
Power 35.5kW/2600rpm
Total Weight 6920Kg


10m Diesel Self-Propelled Electric Scissor Lift10m Diesel Self-Propelled Electric Scissor Lift
